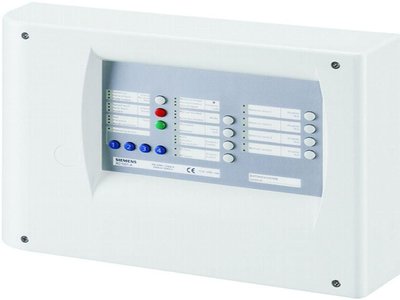

Siemens Extinguishing Panel

XC1001-A
Extinguishing panel Standard
Stock no. S54390-C1-A1



The compact dimensions of the Standard variant of XC1001-A are ideally adapted for single-sector applications, small to medium installations. It provides a full range of monitored inputs and outputs as well as digital and relay outputs. Self-contained control panel including fire detection and extinguishing control. The configurable relay outputs can be used to transmit information to a FS20/FS720 fire detection panel via FDnet/C-NET I/O modules.
The detection lines can be configured to AlgoRex‚ Cerberus PRO‚ Sinteso and Synova conventional and collective devices.



Attribute Value
Mains voltage AC 115...230 V +10...-15 %, 50/60 Hz
Power consumption Max. 150 VA
Alarm relay output (NO/NC) 30 V / 1 A max.
Battery capacity 2 x 12 V / 4.5 Ah
Operating temperature -5...+40 °C
Conventional line 3
Control output 24 V / 1 A max.
Control input 4 monitored inputs (loss of agent, pressure switch)
4 non monitored inputs (activation via contacts)
Relay output (volt-free)
Storage temperature -20…+60 °C
Standard EN 12094-1, EN 54-2/A1, EN 54-4/A2
Case protection category IP30
Color ~RAL 9003, Signal white (cover) / ~RAL 9006, White aluminum (user interface)
Dimensions (W x H x D) 370 x 286 x 90 mm
Accessories Z3B171 Relay module, FCA1007 Key switch kit, FCA1014 Battery holder, XCH1001-A Cover set
Expansion XCE1002 Trigger element, XCA1020 Accessory set for FDCIO



For further details, view the PDF
