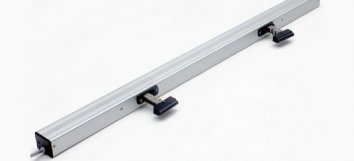

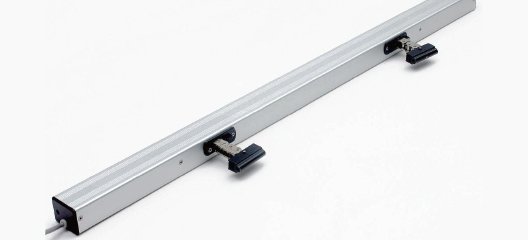

24V Dual Chain

Technical Features

  • Two Motors And Two Chains Design For Wide And Heavy Window
  • Flexible Stroke / Force / Speed Adjustment
  • Double Link Chain / Stainless Steel Chain Is Available
  • Electronic Overload Cutoff Protection
  • Automatic Stop Protection For The Obstacle
  • Synchronizing Moves When Joined Groups
  • Flexible Mounting Brackets For Installation
  • Low Noise Operation And Operate Smooth ,Stable
  • Locking Force In Static Motion is 90,000N



ACTUATOR  COLT 1200N
TYPE Motorized
ACTUATOR TYPE Chain Opening
VOLTAGE(all +/- 5%) DC 24V
MAXIMUM OPERATING CURRENT 3.0A
STROKE 50 /100 /150 /200 /250 /300 /350 /400 /450 / 500 /550 /600 /650 /700 /750 /800 mm
OPERATING SPEED 10mm/sec
AMBIENT OPERATING TEMP -20c ~ +60c
THRUST/PULL FORCE 1200N
PROTECTION DEGREE IP 32
PRODUCT LIFE 10,000 times
BRACKET Standard



For further details, view the PDF
