ac230v-single

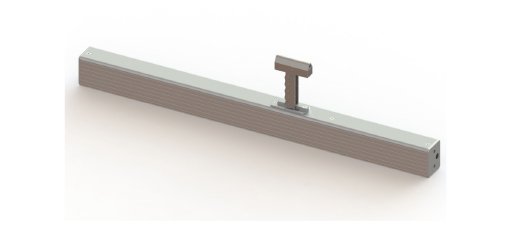

AC230V Single Chain

Technical Features

  • Flexible Stroke / Force / Speed Adjustment
  • Double Link Chain / Stainless Steel Chain Is Available
  • Electronic Overload Cutoff Protection
  • Automatic Stop Protection For The Obstacle
  • Synchronizing Moves When Joined Groups
  • Flexible Mounting Brackets For Installation
  • Low Noise Operation And Operate Smooth ,Stable
  • Locking Force In Static Motion is 72,00N



ACTUATOR  COLT 400N
TYPE Motorized
ACTUATOR TYPE Chain Opening
VOLTAGE(all +/- 5%) AC 230V
MAXIMUM OPERATING CURRENT 0.4A
STROKE 460 mm
OPERATING SPEED 12mm/sec
AMBIENT OPERATING TEMP -20c ~ +60c
THRUST/PULL FORCE 400N
PROTECTION DEGREE IP 32
PRODUCT LIFE 10,000 times
BRACKET Standard



For further details, view the PDF
